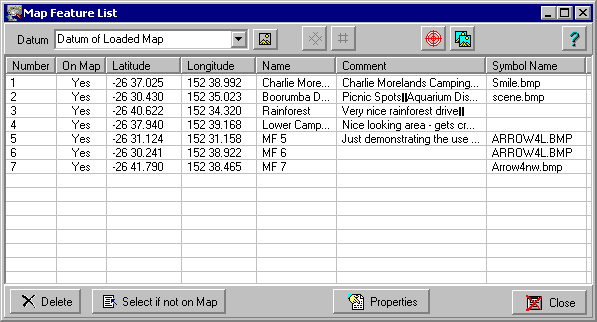

Map Feature List

Datum

Datum - The datum of the positions displayed in the list.

Sets the Datum to the Datum of the currently loaded map.

If the Datum of Loaded Map is selected then the datum used will always be the same as the datum of the currently loaded map. To see the datum of the loaded map place the mouse pointer on the field and the datum will be displayed as a hint.

Buttons

Position Format Buttons - Show the positions in Degrees or the selected Grid. The Grid will change to reflect whatever Alternate Grid system you have chosen in the Configuration.

Plot Location of Selected Map Feature on Current Map - The map is moved to position the selected Map Feature in the center of the map.

Find Map for the Selected Map Feature - The maps are scanned and those which contain the position of the selected Map Feature will be shown in a list.

Delete the Selected Map Features - Deletes all the Map Features which have been selected.

Select if not on Map - If the Map Features are not located on the currently loaded map then they are selected.

Properties - Opens the property dialog of the selected Map Feature.
