Changing the Name and Location of Map Images

The location and name of the image (link) for the map is stored within the map file (these files have a .map file extension). If you move the map images then this link is no longer correct and needs to be changed.

This feature allows you to :

1. Change the link for the map image within the currently loaded map to a new location or to a new location and name if required.
2. Change the links for the map images for all the map files in a specified folder to a new location. This option only changes the location (path) for the images not the image name.
3. Change the Drive specified in the links for the map images for all the map files in a specified folder to a new location. This option only changes the Drive identifier in the location (path) for the images not the full image path or the image name.

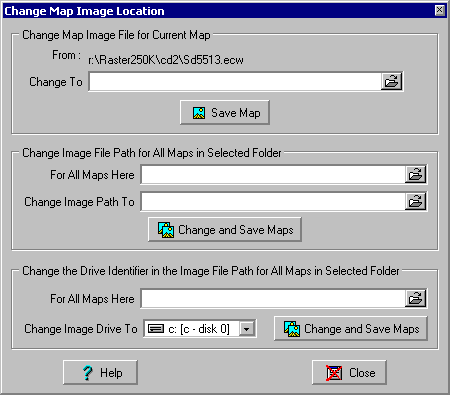

Fields

Change Map Image File for Current Map

Change To - Select the image file you want the currently loaded map to be changed to.

Save Map - Saves the map file with the selected image link.

Change Image File Path for All Maps in Selected Folder

For All Maps Here - Specify the location of the maps to change. Note : all map files in this path will be changed.

Change Image Path To - Select the path where the images are located.

Change and Save Maps - Process all the map files.

Change the Drive Identifier in the Image File Path for All Maps in Selected Folder

For All Maps Here - Specify the location of the maps to change. Note : all map files in this path will be changed.

Change Image Drive To - Select the new Drive that you want to change the image link to. The path or image name is not changed, only the Drive identifier in the path is changed.

Change and Save Maps - Process all the map files.
